A design principle: simplicity. For TOP ENGINEERING, this means choosing solutions that are focused on the system’s core functions: less unnecessary complexity, fewer critical points, and greater ease of management and maintenance over time.
We present a selection of solutions designed for material handling and line integration: roller conveyors, belts, 90° transfers, pallet lines, part orientation, panel handling, and storage/picking systems. Each configuration is tailored to the specific process and available layout, with a focus on durability and simplified maintenance.

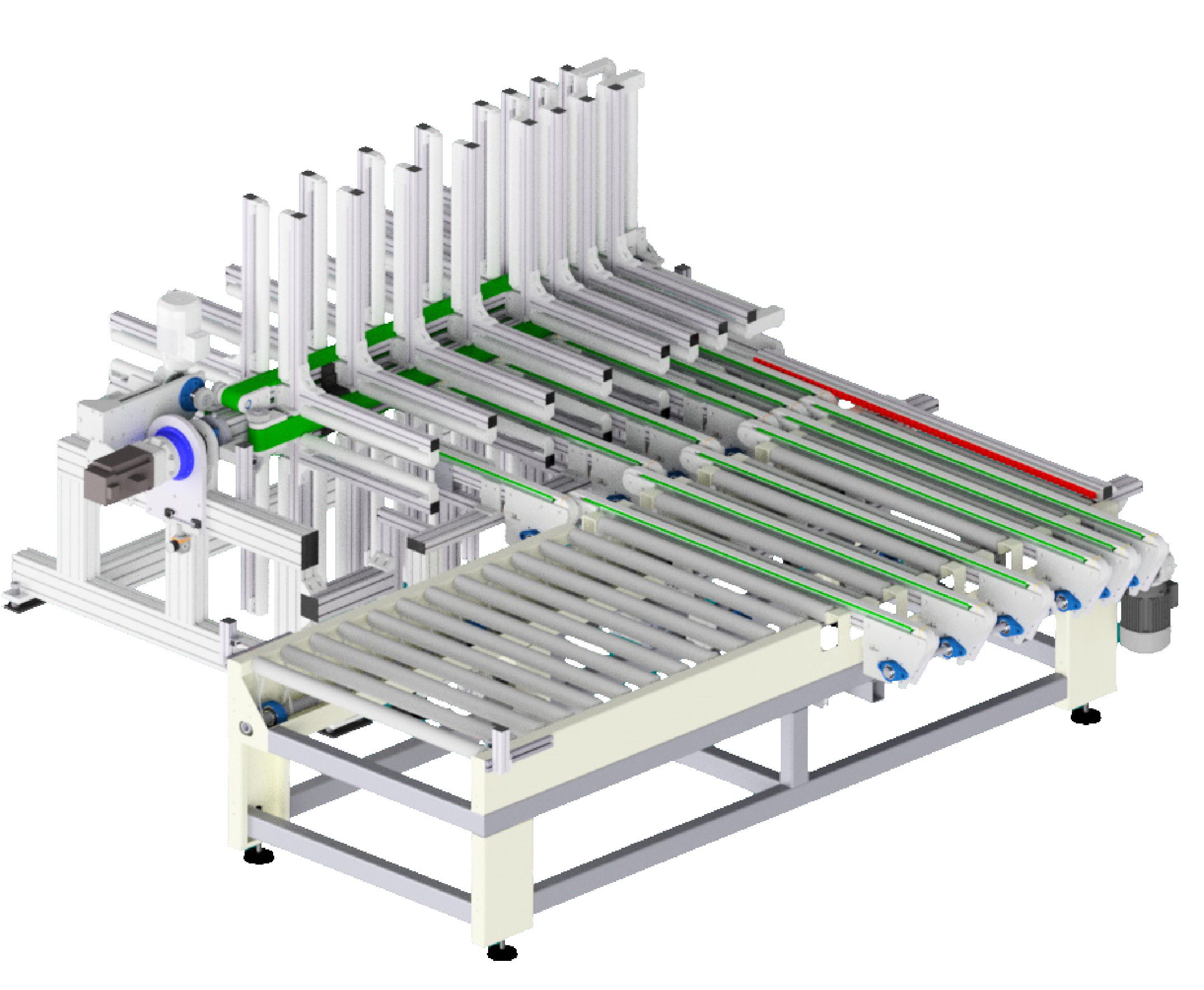

Cross transfer turner
The Cross transfer turner is a handling system designed to pick up a panel, lift it, and rotate it by 90° while maintaining full control of its position. After rotation, the panel is transferred parallel to its original plane. The unit consists of two crossed axes: one dedicated to lifting and rotation, and the other to linear transfer. This configuration ensures smooth and precise movement, reduces cycle times, and improves safety when handling panels of various sizes.

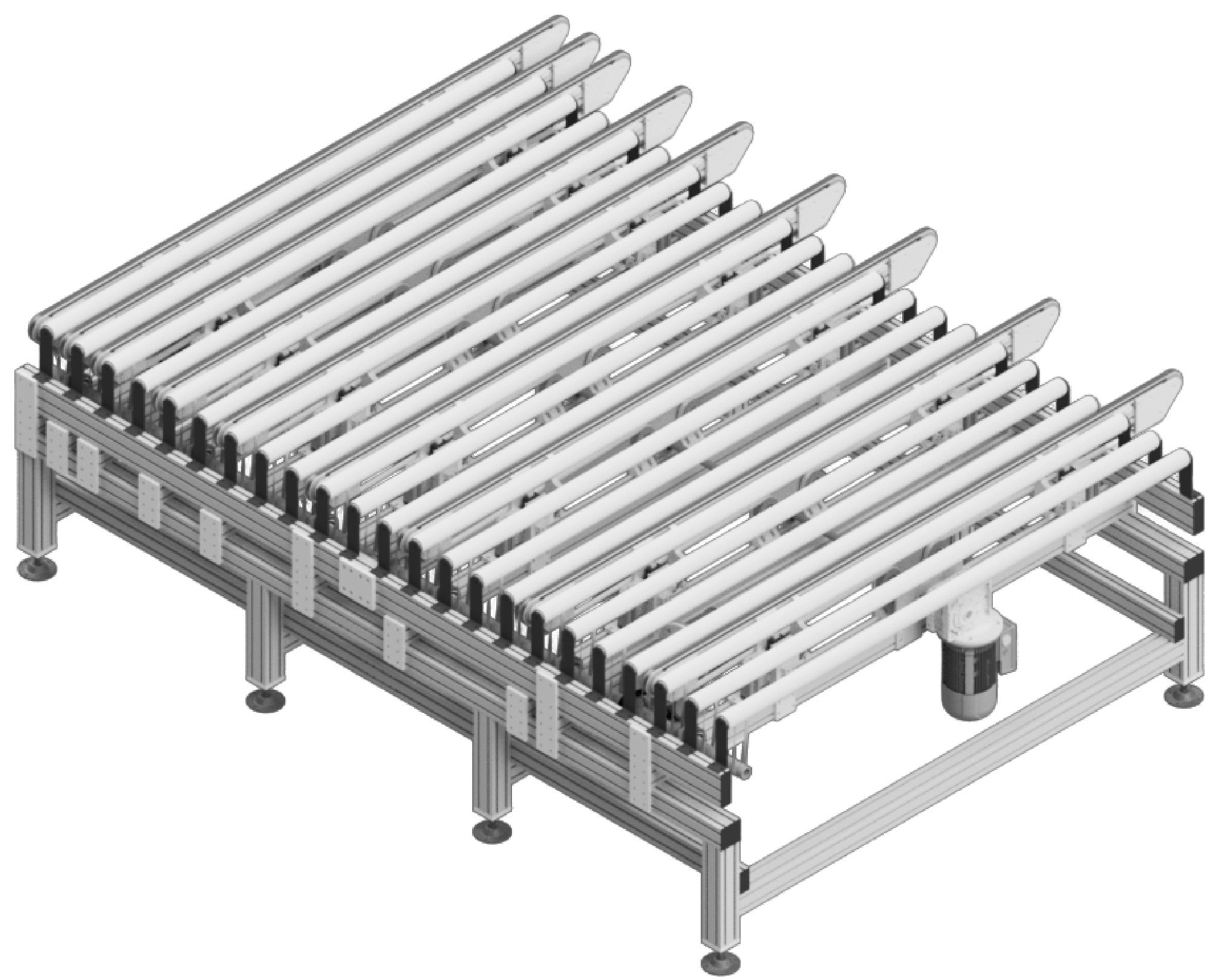

90° Transfer roller conveyor
The 90° Transfer roller conveyor is an automated handling system designed to divert packages or pallets from a main conveyor line to a secondary line with maximum precision. The powered roller conveyor ensures continuous and controlled product flow, while the 90° transfer unit — equipped with liftable belts or rollers — enables fast and reliable direction changes. This system is ideal for logistics installations, packaging lines, and high-efficiency production environments.

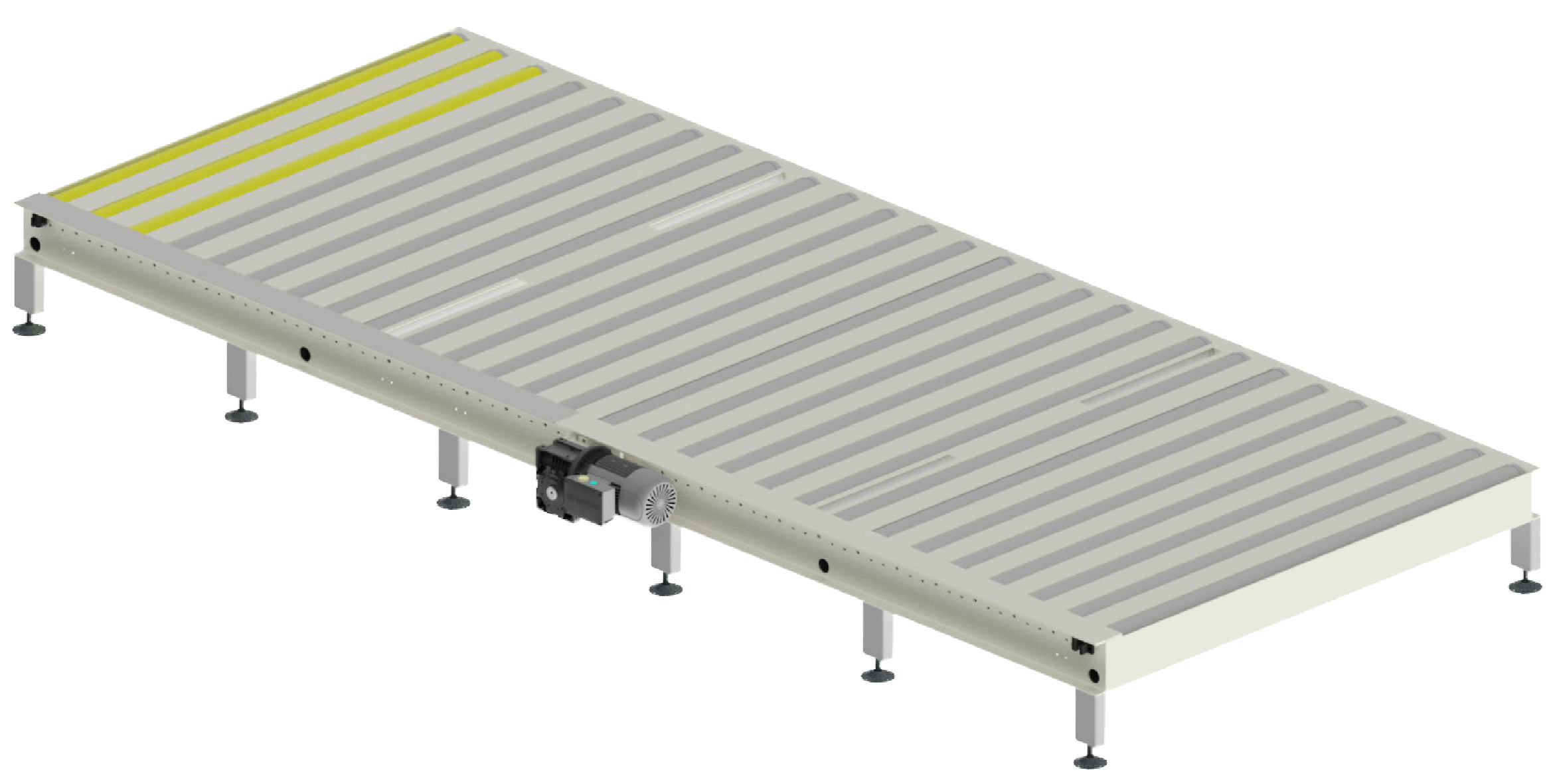

Powered roller conveyor
Powered roller conveyors provide an ideal solution for stable and modular transport of pallets, packages, and components in production lines or automated warehouses. Modules can be arranged in linear, curved, or complex configurations and integrated with transfer modules, rotating tables, vertical lifts, and other automated systems. Thanks to modular design and adjustable motorization, these conveyors ensure efficiency, flexibility, and load safety, supporting continuous product flow even in high-density handling environments.

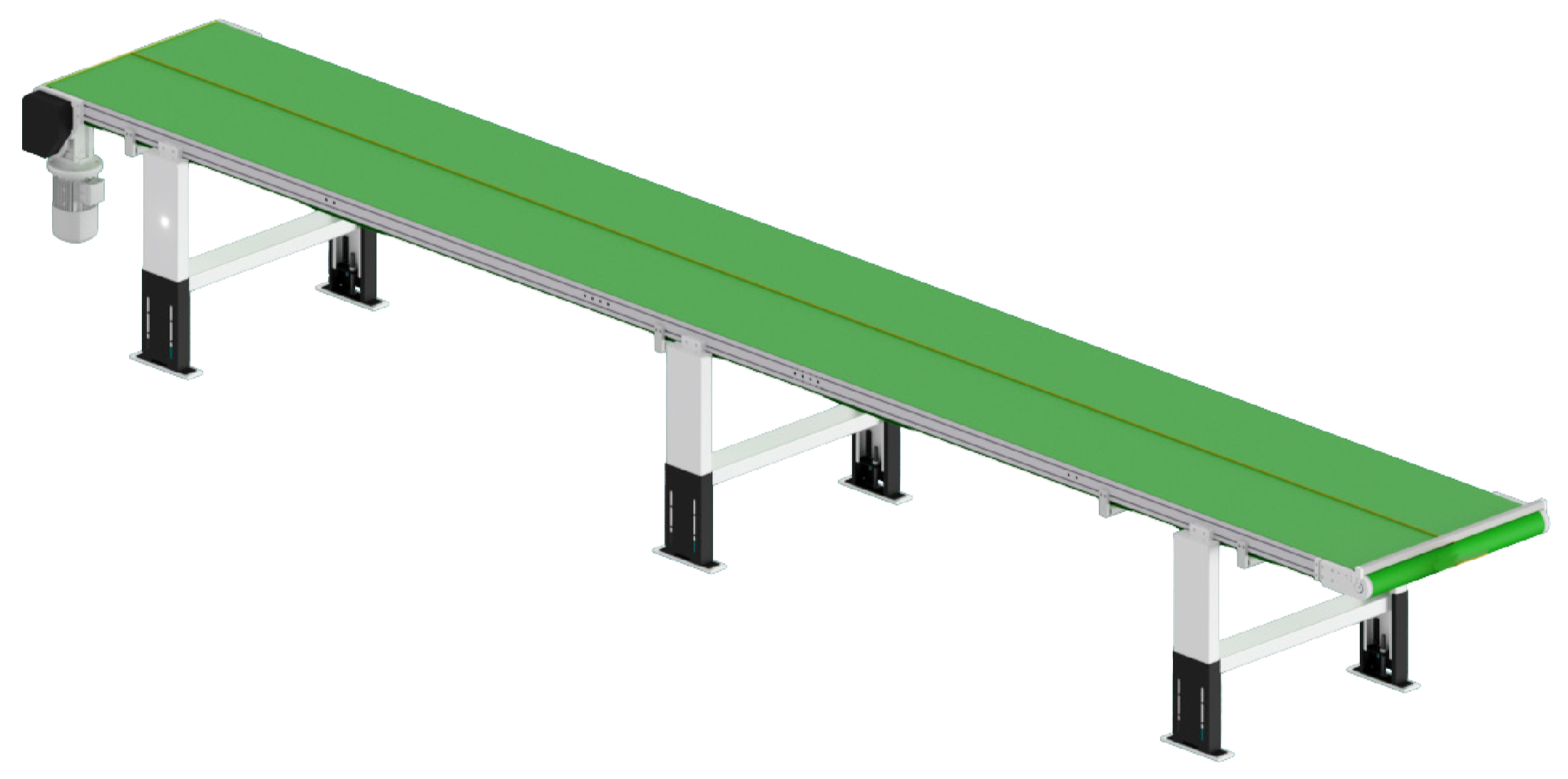

Belt conveyor
Belt conveyors are designed to provide continuous and uniform transport of packages, boxes, components, and various types of products. Manufactured using robust and modular materials, they offer flexibility in width, length, and belt surface configurations, allowing transport of both light and heavy loads with maximum safety and reliability. Thanks to compatibility with sensors, PLCs, and automation systems, Belt Conveyors can be integrated into packaging, assembly, and transfer lines, optimizing production flow.

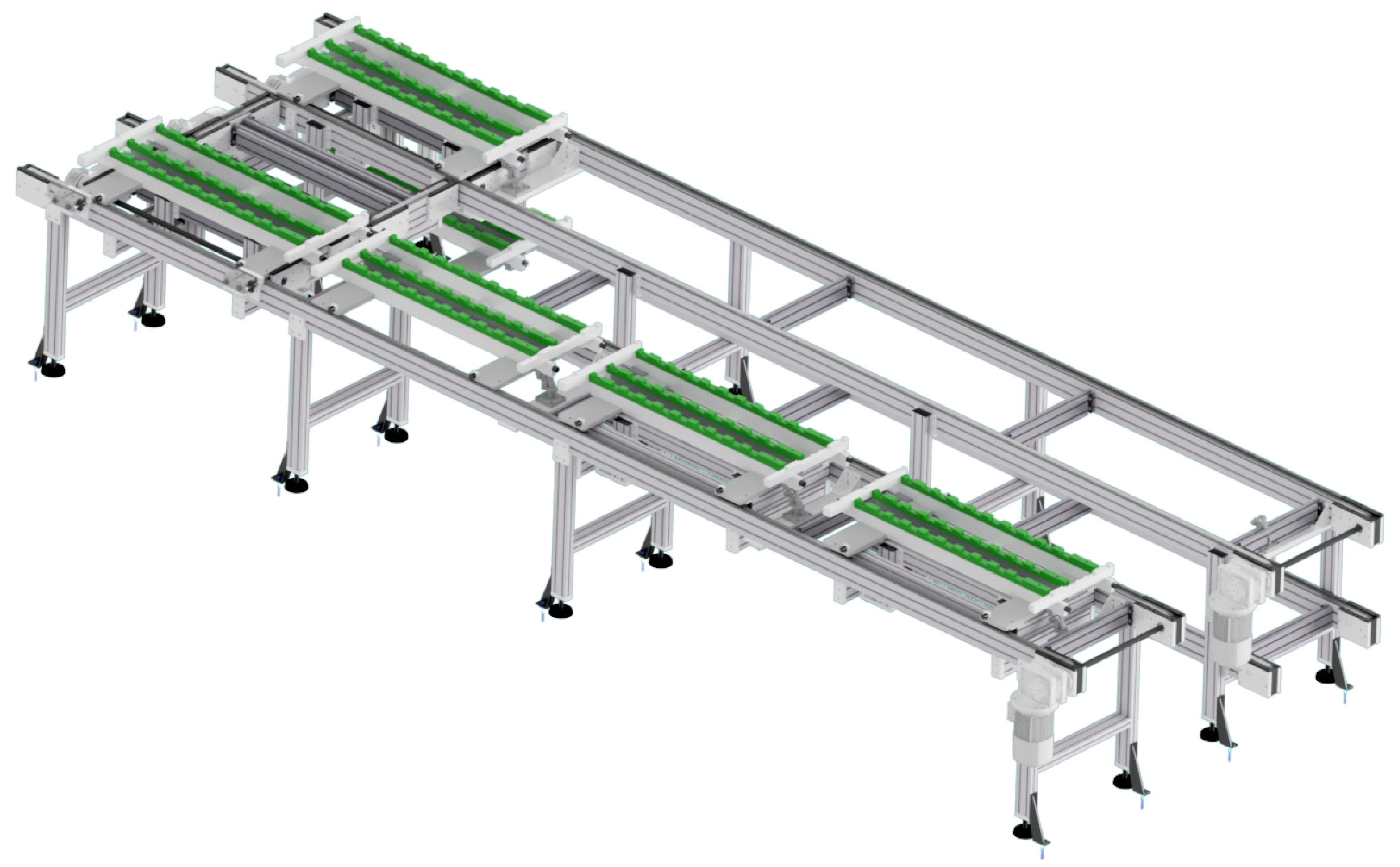

Pallet conveyor system
Pallet conveyor systems provide modular and flexible solutions for handling pallets within production lines, warehouses, and logistics installations. Modules can be configured in linear, curved, or complex layouts and integrated with workstations, rotating tables, vertical lifts, and robotic systems. Thanks to integrated control systems and controlled accumulation capabilities, the system ensures precision, continuous flow, and compatibility with industrial automation solutions, allowing efficient management of medium and heavy loads.

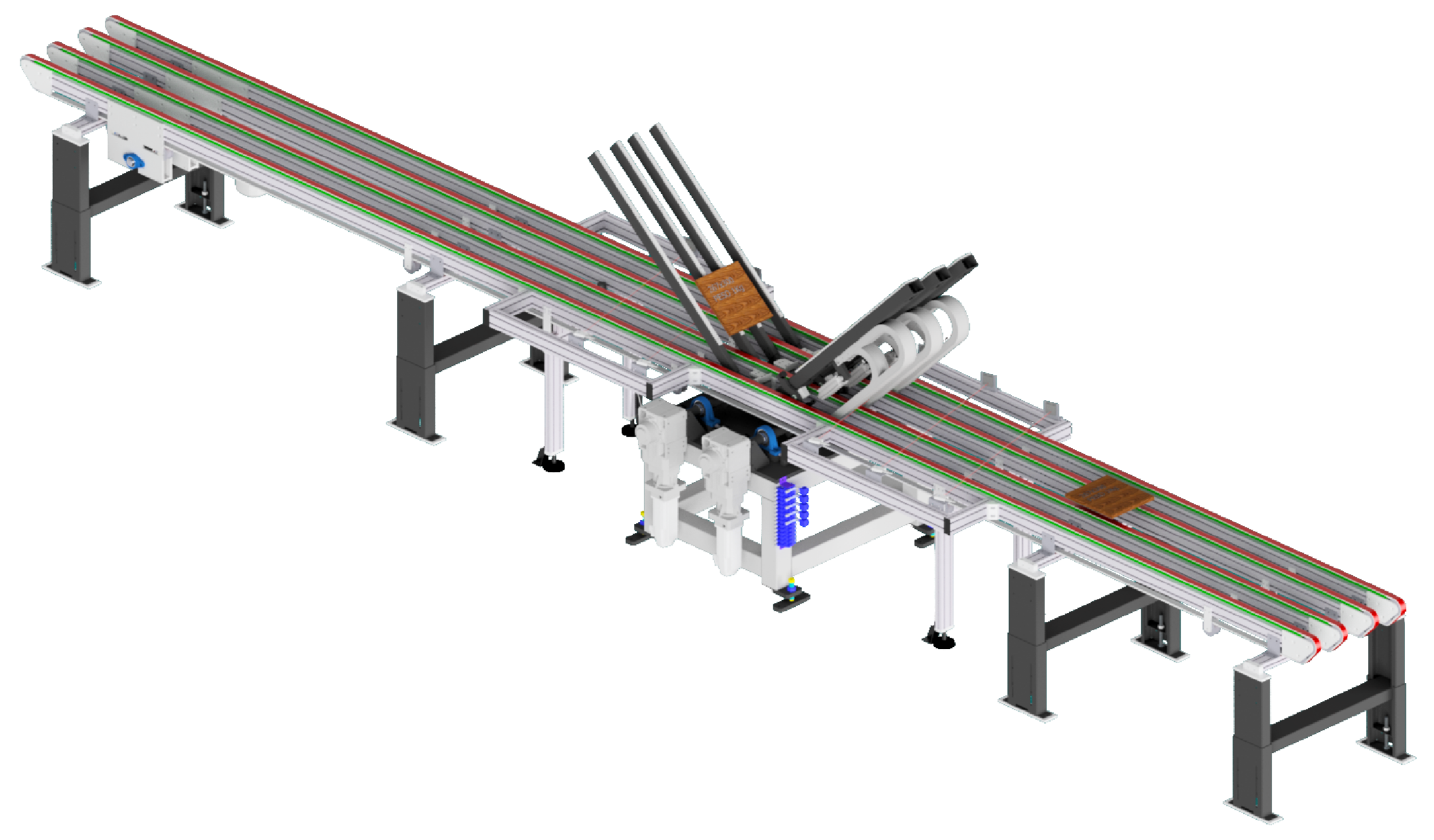

Belt conveyor with part rotator
The Belt conveyor with part rotator is designed to handle and rotate products quickly and accurately during transport. The integrated rotating unit allows rotation up to 360° directly on the conveyor line, eliminating the need for additional stations. Compact, reliable, and easy to integrate, this system ensures high efficiency and precise product orientation across different industrial sectors.

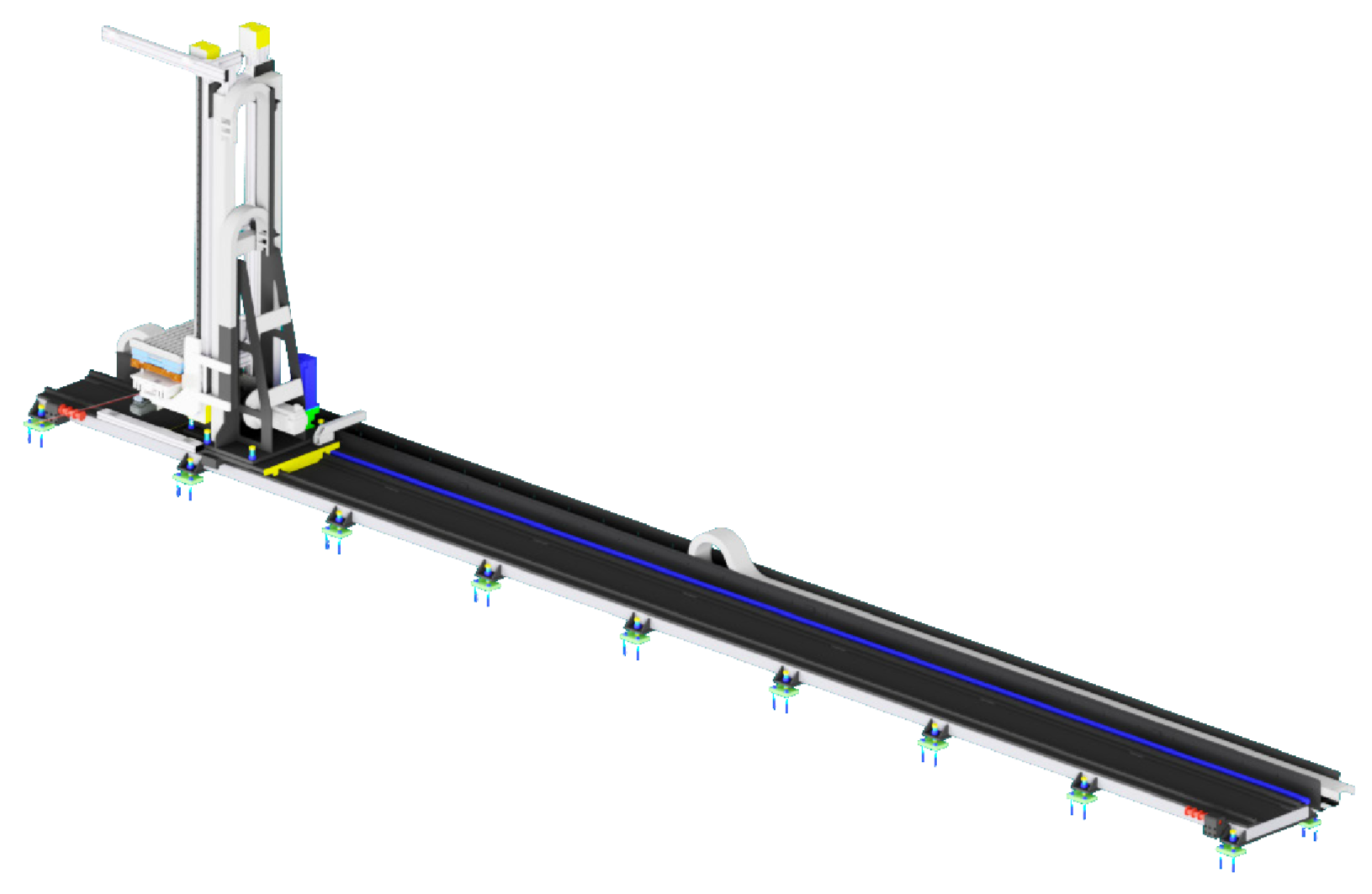

AS/RS Stacker crane
AS/RS Stacker cranes are high-efficiency automated storage and retrieval systems designed to handle pallets in high-bay automated warehouses. Operating along dedicated aisles, they perform storage and retrieval operations quickly and precisely using telescopic forks and advanced electronic control systems. These systems ensure operational continuity, optimized warehouse space utilization, and reduced handling errors, making them ideal for logistics, distribution, and high-intensity production environments.

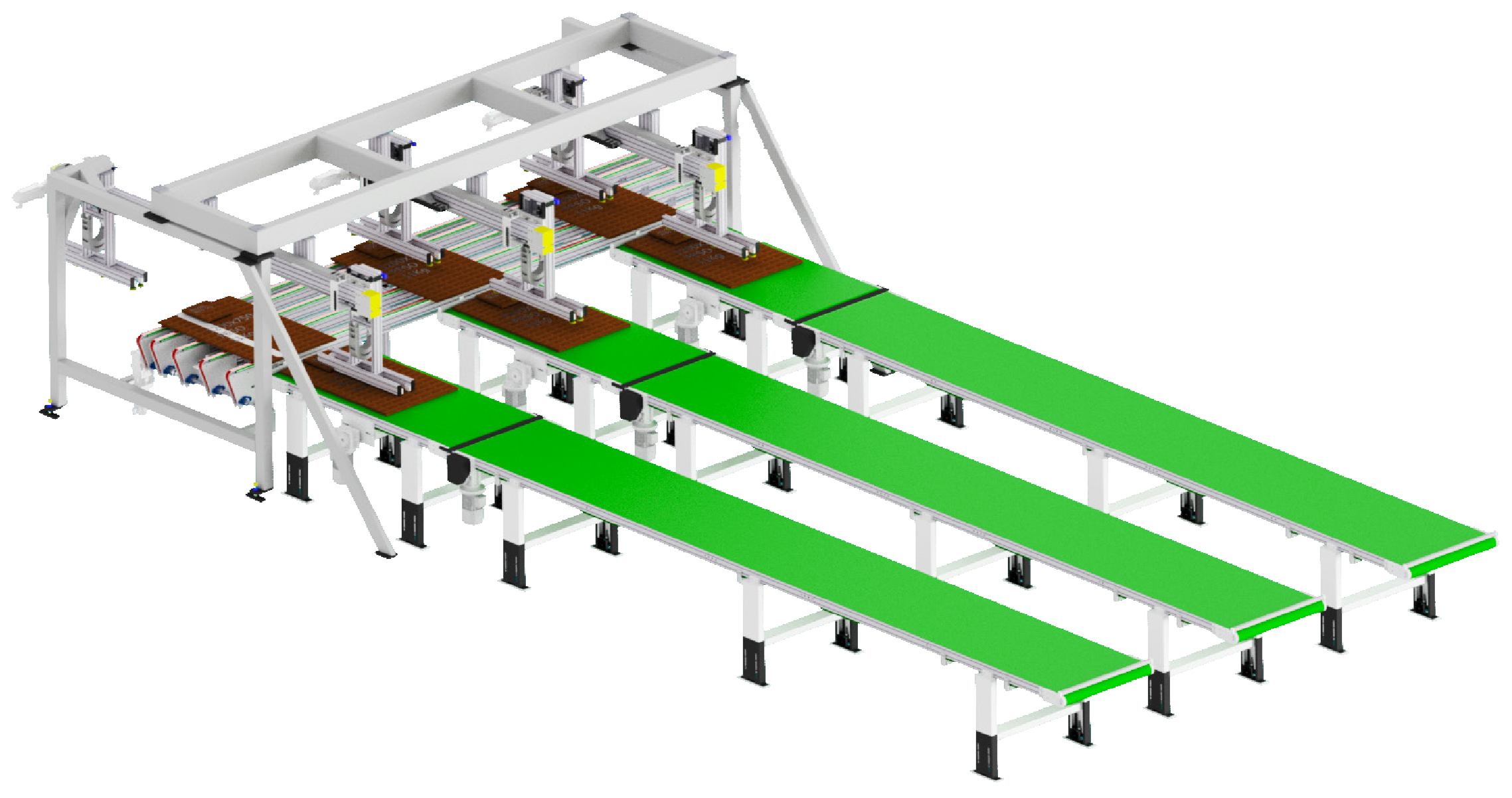

Automated panel handling line
The Automated panel handling line with integrated manipulator is designed for precise transport and positioning of panels along the production process. The robotic manipulator allows panels to be handled without manual intervention, ensuring efficiency, safety, and reduced cycle times. The system is suitable for various panel sizes and types, optimizing production flow while minimizing damage and positioning errors.
